High Quality Aspheric Glass Lens, Yellow Brass Single Aspheric Collimating Lens, Two Rubbers Glass Collimator Lens Suppliers in China

Home > Products > X Ray Collimator > M9xP0.5x10 aspheric glass collimator lens

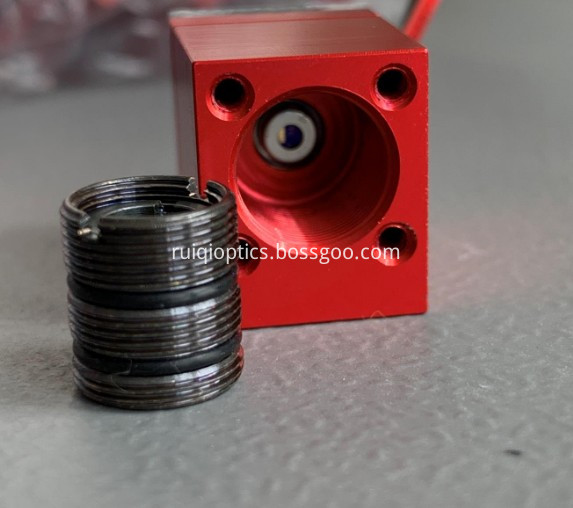

M9xP0.5x10 aspheric glass collimator lens

  • M9xP0.5x10 aspheric glass collimator lens
  • M9xP0.5x10 aspheric glass collimator lens
  • M9xP0.5x10 aspheric glass collimator lens
  • M9xP0.5x10 aspheric glass collimator lens

M9xP0.5x10 aspheric glass collimator lens

Basic Info

Model No.: RQ-0058

Product Description

M9*P0.5*8 aspheric glass collimator lens,laser collimator


The molding glass collimating aspheric lenses are mainly designed with aspherical surface and made by molding technology.
Changchun Ruiqi now offer molding glass collimator lens--M series. The advantages of aspherical surface include small size, high performance, stable quality control in mass production and low cost comparing to traditional ground lens. Therefore, molding glass collimator lenses are commonly used in variety of applications, like industrial laser marking and detecting distance meters, laser projection and laser Optical system.



Property

Molded Glass, aspheric Surface as laser collimator


Application

  • Industrial and automotive alignment laser for small dimension
  • Laser collimated for hand-held positioning and sensing
  • Small dimension/short focal length requirement for optical design
  • Application in high temperature or adverse circumstance



Yellow type single aspheric lens Specifications:

Wavelength 405nm 445nm
EFL(Effective focal length) 4.02mm
Outer Diameter 6.33mm
SD(Back Focal Length) 2.357mm
NA(Numerical Aperture) 0.60mm
CA(Effective Aperture) 5.1mm
Mount Diameter(Thread Diameter) M9×P0.5
Edge Thickness 6mm 8mm 10mm upon request
Coating AR Coating 400-700nm





Compatibility:

for laser diodes or any other wavelength is between 200nm and 1100nm Light source ,such as 405nm 450nm 635nm 650nm 660nm 670nm 680nm 780nm 808nm 830nm 850nm 880nm 905nm 940nm 980nm

Please keep the lens clean to make the laser beam clear and bright. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.



two rubber


Our Company

Changchun Ruiqi Optoelectronics Co.Ltd., was establish in 2010, our company is located in Changchun City, Jilin Province, the optical base of China. The company has specialized production equipement and experienced technical team. Company is mainly engaged in optical components, such as optical windows, LWIR lens, optical prisms, optical mirrors, optical filters, CO2 laser optics module etc. precision optics design, production and sales of one-stop service. The optical lens is mainly applied in mechanical instrumentation, optical instrument, medical hairdressing apparatus, teaching and scientific research instrument, semiconductor, laser technology, military and aerospace high-tech areas, etc; products are mainly exported to Southeast Asia, North America, Europe, Russia, Japan, Korea and other developed countries and regions. We have won a high reputation from the customers both home and abroad. Company adhere to the "quality, efficiency and service" for business purposes, has made widely recognized by domestic and foreign customers. Looking ahead, we will continue to innovate, willing to work with customers to grow, and win-win cooperation, the brilliant future of China's optical field and make unremitting efforts.



Changchun Ruiqi Optoelectronics Co.,Ltd



Changchun Ruiqi Optoelectronics Co.Ltd., was establish in 2010,our company is located in Changchun City,Jilin Province,the Optical base of China.The company has specialized production equipement and experienced technical team. Company is mainly engaged in optical components, such as lens, LWIR lens, prisms, windows, mirrors, filters, laser module etc.precision optics design, production and sales of one-stop service.

The product is mainly applied in mechanical instrumentation, optical instrument, medical hairdressing apparatus, teaching and scientific research instrument, semiconductor, laser technology, military and aerospace high-tech areas, etc; products are mainly exported to Southeast Asia, North America, Europe, Russia, Japan,Korea and other developed countries and regions. We have won a high reputation from the customers both home and abroad.

Company adhere to the "quality, efficiency and service" for business purposes, has made widely recognized by domestic and foreign customers. Looking ahead, we will continue to innovate, willing to work with customers to grow, and win-win cooperation, the brilliant future of China's optical field and make unremitting efforts
