dr x ray system flat panel detector with dr x ray equipment

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-2{text-align:center}#detail_decorate_root .magic-3{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-4{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-5{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-6{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-7{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:684px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{font-size:18px}#detail_decorate_root .magic-11{display:none}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:324px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:341px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:323px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-16{margin-bottom:0}#detail_decorate_root .magic-17{position:relative;width:100%}#detail_decorate_root .magic-18{width:750px}#detail_decorate_root .magic-19{width:320px}#detail_decorate_root .magic-20{overflow:hidden;width:320px;height:113px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:207px;height:115px}#detail_decorate_root .magic-22{overflow:hidden;width:320px;height:113px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:203px;height:111px}#detail_decorate_root .magic-24{overflow:hidden;width:426px;height:348.75199999999995px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:426px;height:348.75199999999995px}#detail_decorate_root .magic-26{text-align:justify}#detail_decorate_root .magic-27{font-weight:bold;font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-28{overflow:hidden;width:373px;height:279.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:373px;height:279.75px}#detail_decorate_root .magic-30{overflow:hidden;width:373px;height:279px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:675px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:675px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:174px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:174px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:440px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:440px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:405px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:405px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:1266px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:1266px} dr x ray system Flat Panel Detector with dr X Ray Equipment Recommended by sellerMedical check x-ray+flat+panel radiography x ray detector for Medical Imaging$1,990.00 - $7,000.00 / Piece1.0 PiecesMedical mobile chest x ray stand bucky stand xray chest stand for Install flat panel detector$1,280.00 - $1,800.00 / Piece1.0 PiecesFactory direct sales chest bucky stand bucky x ray vertical stand for install flat panel detector$980.00 - $1,570.00 / Piece1.0 PiecesNewheek 100mA digital xray machine mobile digital xray machine for X-ray digital imaging$990.00 - $3,500.00 / Piece1.0 Piecesveterinary medical equipment veterinary surgery table for x ray radiology$1,580.00 - $1,920.00 / Piece1.0 PiecesSurgery C-arm table U-arm table xray table for xray machine$1,800.00 - $2,300.00 / Piece1 PieceNewheek medical X Ray Collimator collimator x ray universal collimator x ray for Portable filming machine$370.00 - $470.00 / Piece5 Pieceshigh volage cable for x ray equipment high voltage cable for x ray machine 75kv 90kv$93.00 - $125.00 / Piece1.0 Pieces Product Paramenters

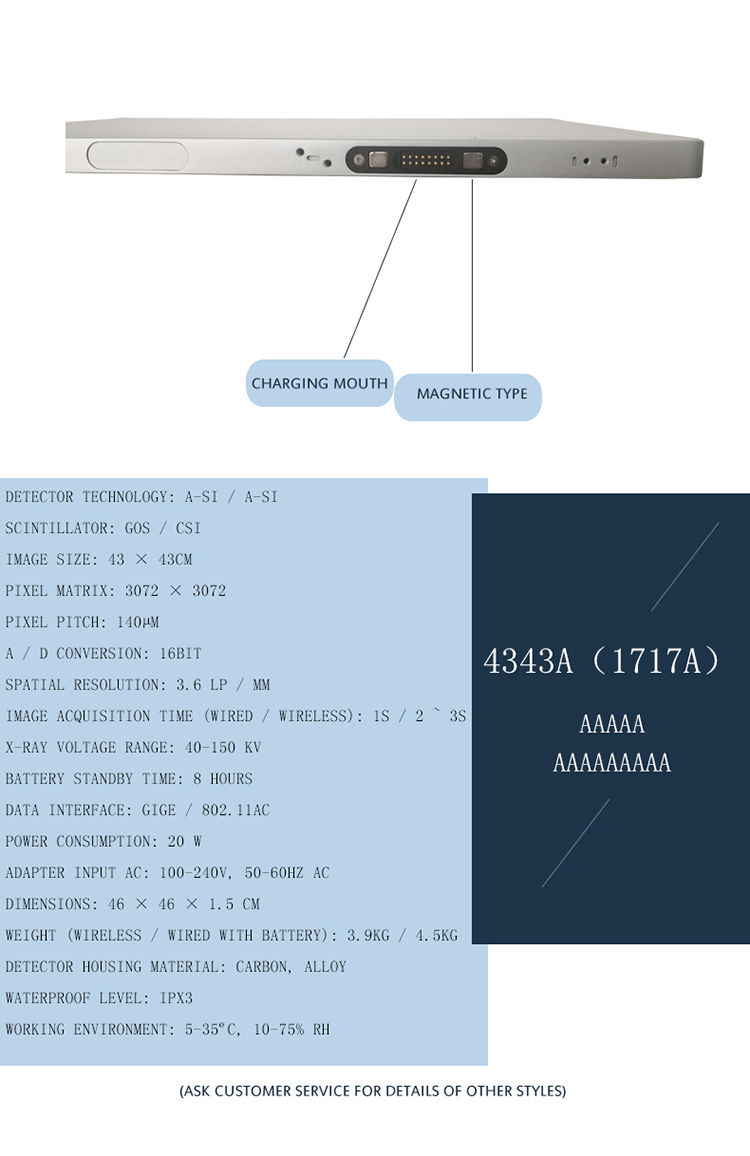

4343A（17*17）		4343A（17*17）
Detector technology	a-Si/a-Si
Scintillator	GOS / Csl
Ilmage size	43 x 43cm
Pixel matrix	3072 x 3072
Pixel pitch:	140um
A/ D conversion	16bit
Spatial resolution:	3.6 LP / mm
Image acquistion time (wired 1 wireless)	1s/2~ 3s
X-ray voltage range	40-150 KV
Battery standby time	8 hours
Data interface	GigE / 802.11ac
Power consumption	20 W
Adapter inputAC	100-240V, 50-60Hz AC
Adapter output DC	24V, 60W
Dimensions	46 x 46 x 1.5 cm
Weight (wireless 1 wired with battery)	3.9kg / 4.5kg

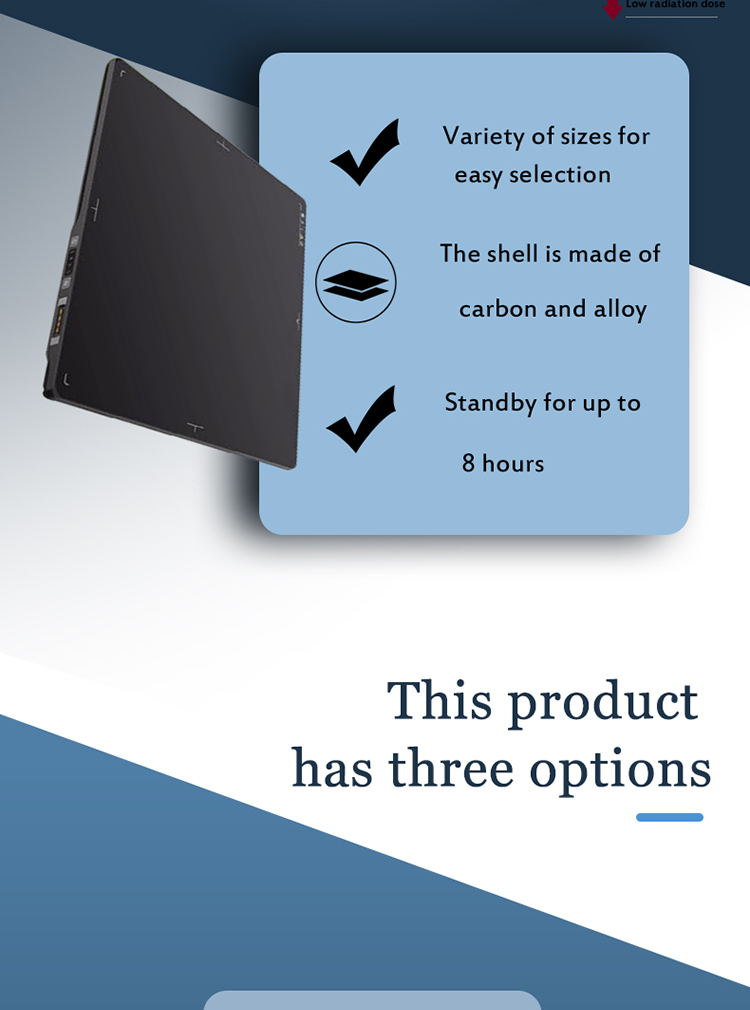

Detector housing material	carbon, alloy
Waterproof level	IPX3
Working environment	5-35*C, 10-75% RH

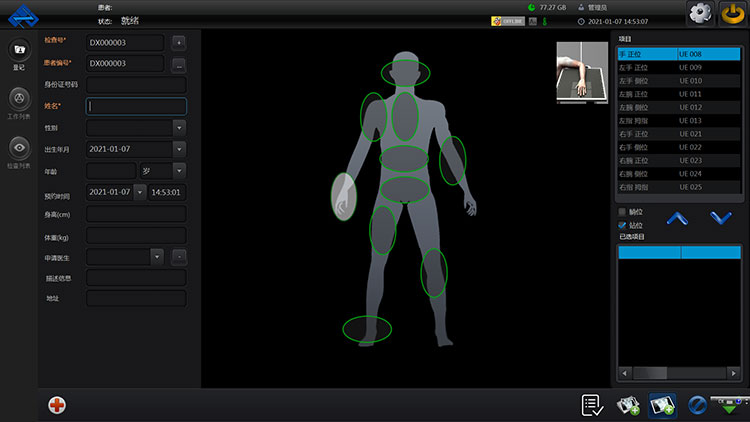

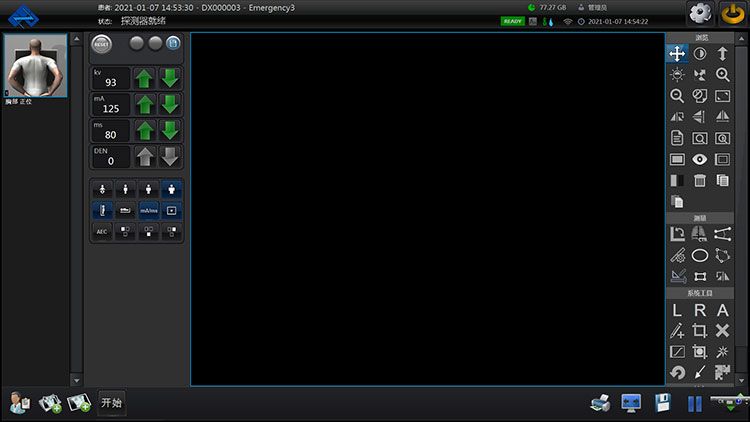

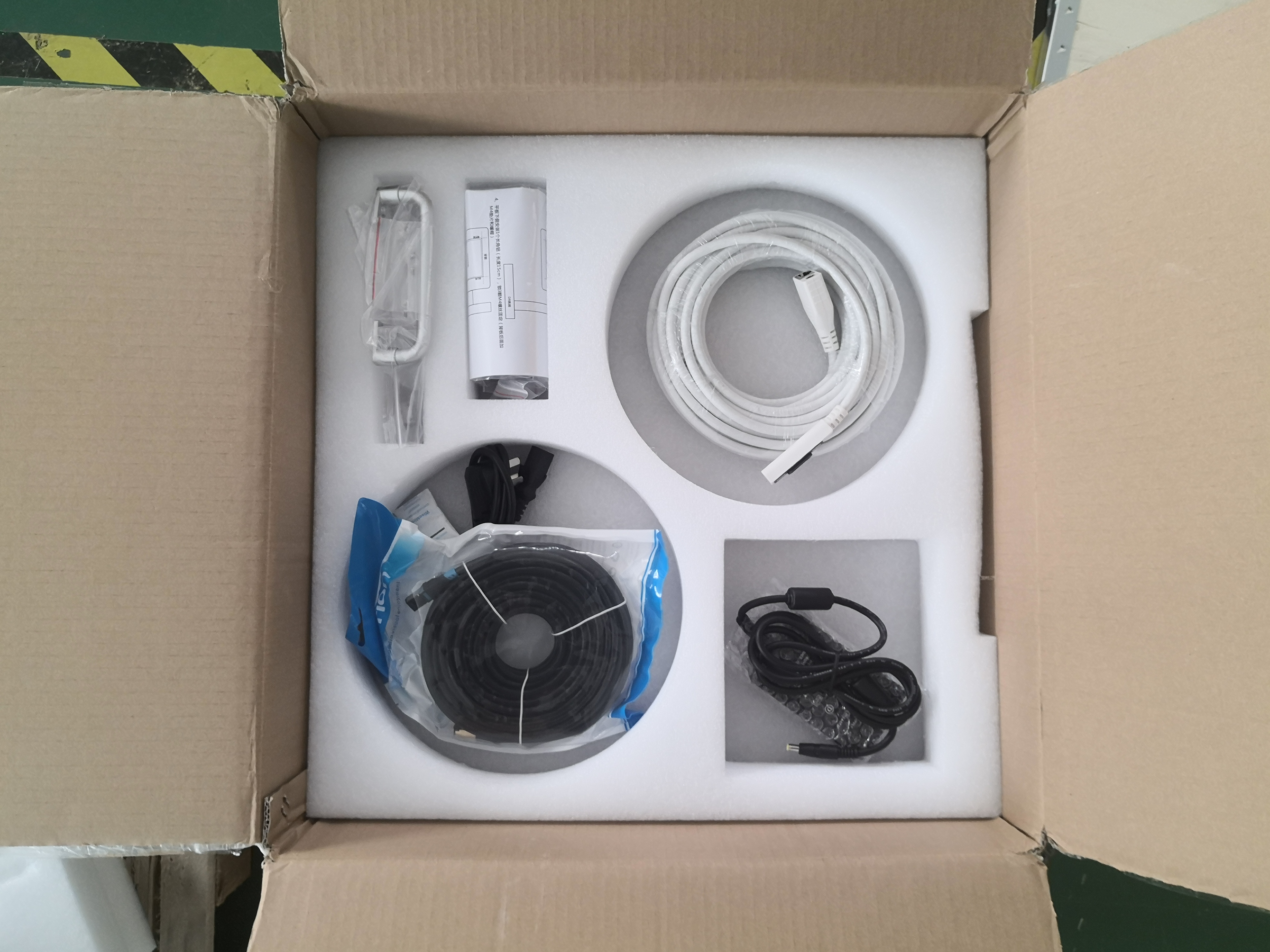

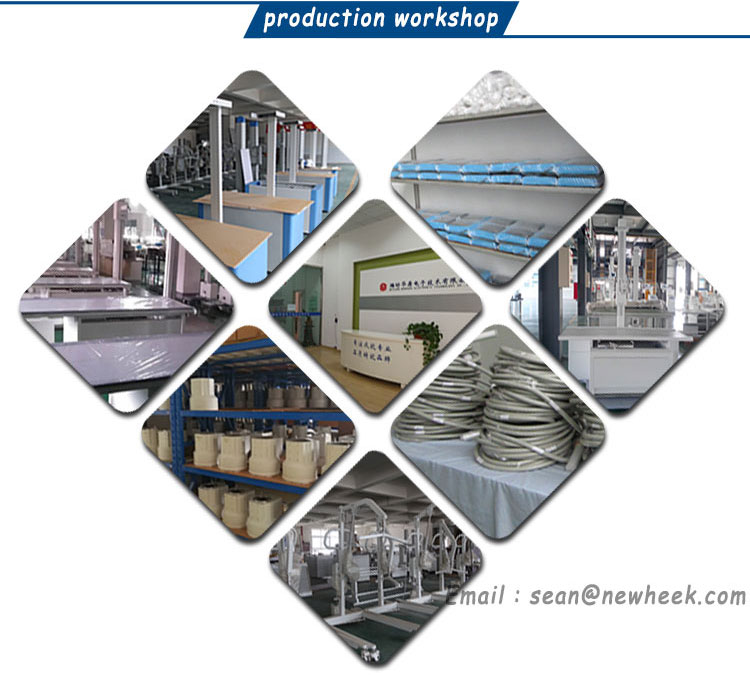

Products Description Medical imaging software This flat panel detector software supports multi-language presets. A more intelligent operation page provides convenience for the operator.Check management: patient registration, work list, check list.Inspection operation: selection of patient size, selection of inspection items, selection of shooting position, selection of photography parameters.Image preset: processing, display, layout, tools, mainly for image viewing and processing.Medical record management: patient information, examination information and image management.Image acquisition: The shooting reference parameters can be directly called from the software, and the window width and position can be adjusted automatically in real time. Packing & Delivery Company Profile Weifang Huading Electronic Technology Co., Ltd. (hereinafter referred to as Newheek) is a professional medical equipment supplier integrating R&D and sales of medical equipment, focusing on the field of radiology medical equipment for 22 years. We have established partnerships with dozens of countries around the world. The main products are: x ray hand switch, foot switch, x ray chest bucky stand, x ray mobile radiography table, X Ray Image Intensifier TV system, high voltage power supply, high voltage cable, collimator, U-arm, portable X Ray Device, mobile DR etc x ray machine machine and components. Newheek is constantly improving and innovating to provide customers with better products and services. FAQ Q1. What is our main product?
A1: We are the original manufacturer of X- ray machine and accessories for more than 16 years. Our main products are Bucky Stand , Mobile X-ray Table , Mobile X-ray machine, X-ray Detector, Exposure Hand Switch , etc.

Q2. What is the Payment Method ?
A2: We could accept payment by TT, Western Union, Visa Credit Card, etc.

Q3. How long is the Lead Time?
A3: Within 15 workdays for X-ray machine accessories after receipt of payment.

Q4. Can our products be customized?
A4: If our product specifications can not meet your needs, we can also customize products for you.We accept OEM or ODM items. We could print your logo during production.

Contact us if you need more details on Dr X Ray. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Dr X Ray Equipment、Dr X Ray System. If these products fail to match your need, please contact us and we would like to provide relevant information.
