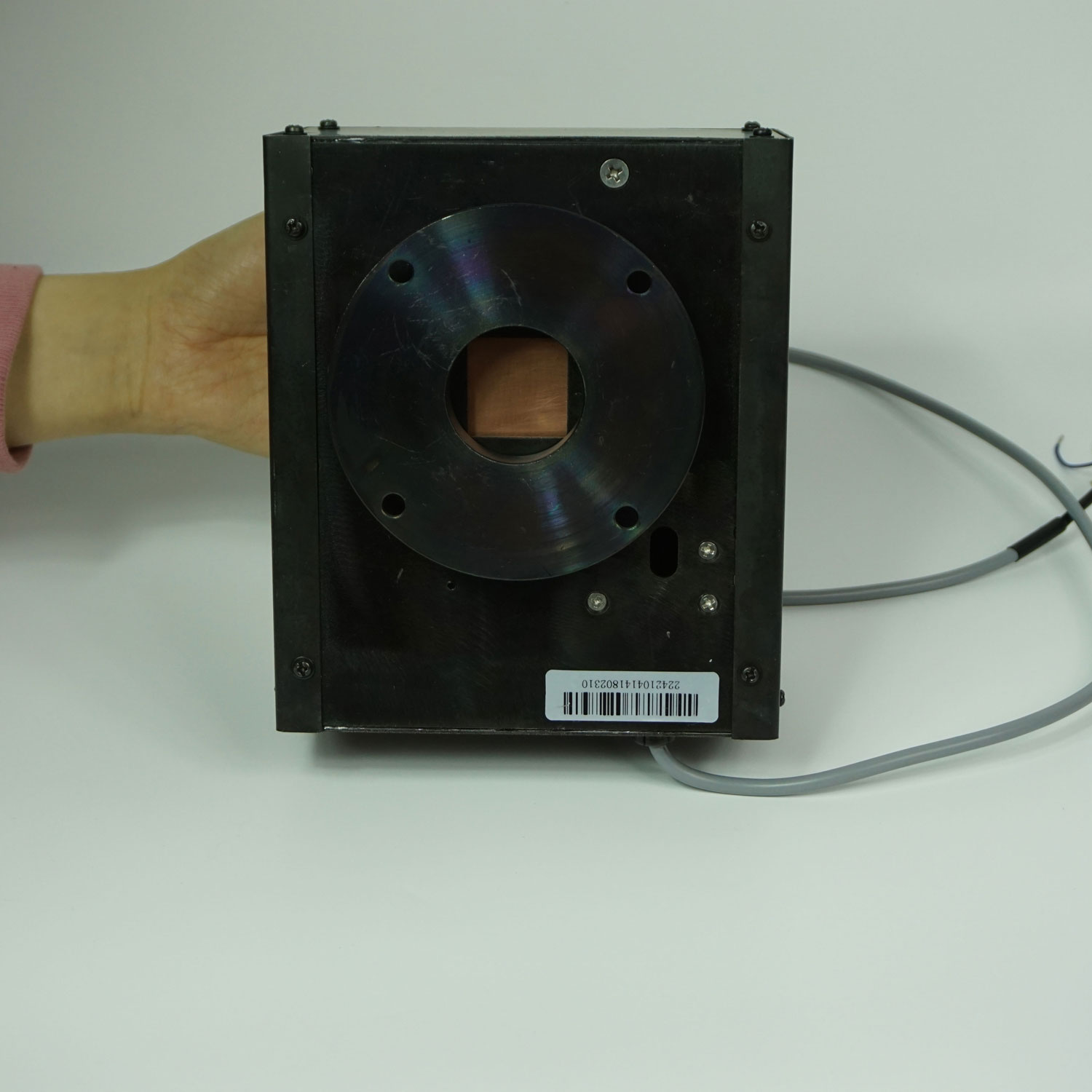

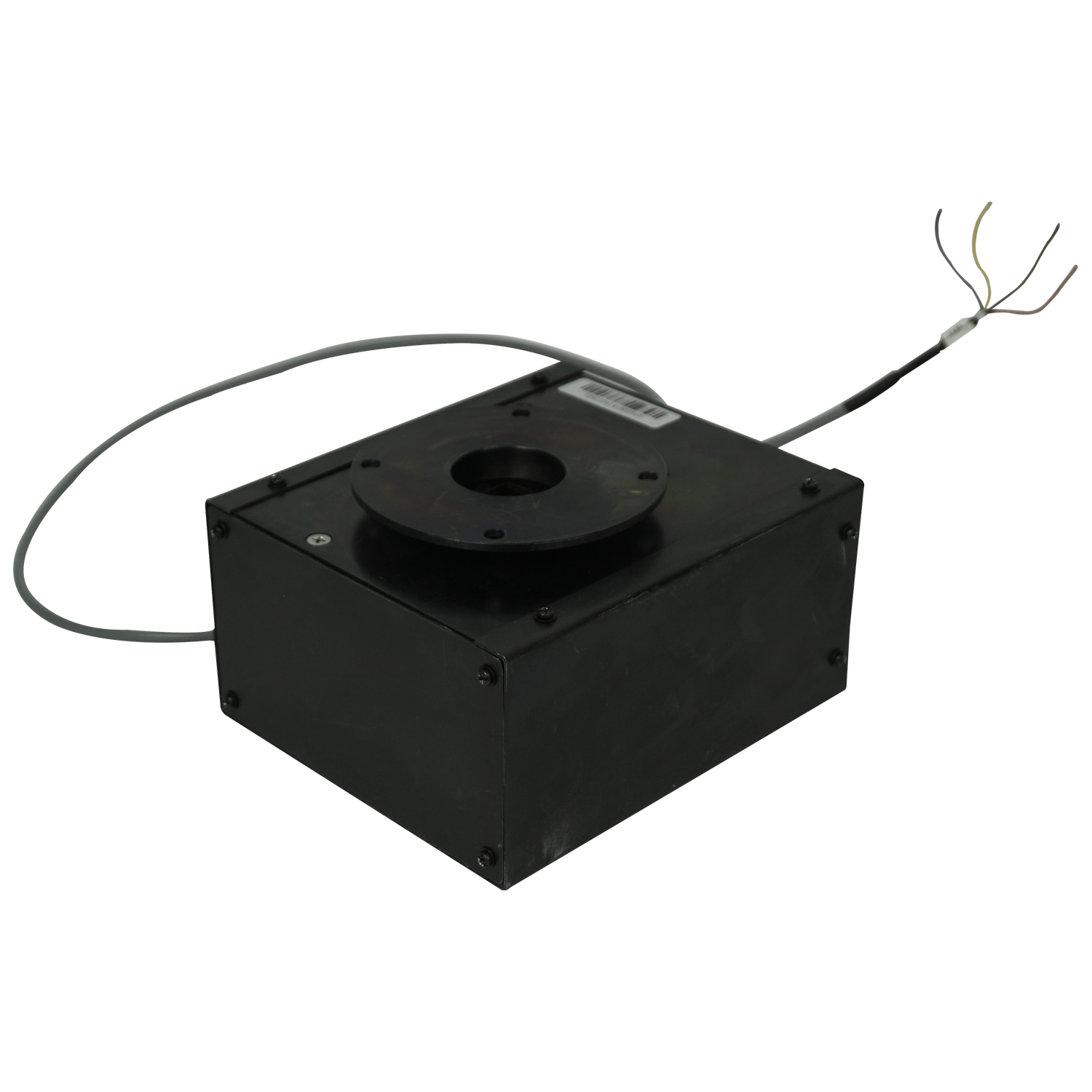

Electric x ray collimator for C arm x ray machine

Product Description

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-4{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-5{width:750px;border-collapse:collapse}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:259px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-7{min-height:28px;padding:5px 10px;width:442px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{overflow:hidden;width:373px;height:340.6633064516129px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:373.00000000000006px;height:340.6633064516129px}#detail_decorate_root .magic-10{overflow:hidden;width:373px;height:340px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:639.0977443609023px;height:340px}#detail_decorate_root .magic-12{vertical-align:top}#detail_decorate_root .magic-13{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-14{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-15{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-16{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-17{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:247px;height:139px}#detail_decorate_root .magic-19{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:247px;height:138px} Product Description Specification
item
value
Place of Origin
China
Shandong
Brand Name
Newheek
Model Number
NK-RF801NB
Power Source
Electric
Warranty
1 Year
After-sale Service
Online technical support
Material
ABS
Shelf Life
3 years
Quality Certification
RoHS
Instrument classification
Class II
Safety standard
MOL
X-ray shielding
125kV/4mA
Maximum irradiation field (SID=100cm)
30cm*28cm
Minimum irradiation field (SID=100cm)
2cm*2cm
Inherent filtration
0mm
Additional filtration
0; 0.1mmCu+1mmAl; 0.2mmCu+1mmAl; 1mmAl+1mmAl
Control mode
CAN-BUS bus communication
Communication protocol
CAN2.0A
Power input
24V DC /2A
Dimensions
168mm*140mm*86mm (L*W*H)
Weight
2.4kg
Packing & Delivery To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile Our company is the brother company of Weifang Newheek Medical Image Equipment Co., Ltd. They comprise Newheek Group. Newheek was founded in 1999, engaged in the research, development, production and sales of image intensifiers. Newheeks' main products include X-ray image intensifier (9", 12", 13"), II TV system, HV Power Supply , CCD camera, image signal processor, monitor, chest holder, movable table, etc. Newheek makes full implementation of international YY/T0287-2003/ISO13485:2003 quality management system to ensure the product quality and sets the international sales service network. Attention creates specialty is Newheek's spirit! International Service Hotline: 86-13791899922; 86-0536-8882360 FAQ 1. who are we?
We are based in Shandong, China, start from 2012,sell to Southeast Asia(22.00%),Western Europe(20.00%),Mid East(18.00%),North America(11.00%),Africa(11.00%),South America(9.00%),Eastern Asia(9.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Flat Panel Detector/ X Ray Machine/ X Ray Image Intensifier/ X Ray I.I TV System/ I.I HV Power Supply/ X Ray Exposure Hand Switch/ X Ray Foot Switch/ X Ray Collimator / X Ray Radilology Table/ X Ray High Voltage Cables/ X Ray Bucky Stand

4. why should you buy from us not from other suppliers?
1. Manufacture xray machine parts for more than 16 years; 2. Do OEM for Siemens, Philips and CPI etc famous international group; 3. Promise super quality with best price; 4. Support the third part inspection; 5. Ensure the shortest delivery period.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese

Contact us if you need more details on X Ray Collimator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Electric X Ray Collimator For C Arm、Iris X Ray Collimator With Led Light. If these products fail to match your need, please contact us and we would like to provide relevant information.
