NK801 X-ray collimator for medical x-ray C arm machine mobile led collimator

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{text-align:center}#detail_decorate_root .magic-4{font-size:18px}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{width:750px}#detail_decorate_root .magic-9{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-10{width:446px}#detail_decorate_root .magic-11{overflow:hidden;width:446px;height:202.72727272727275px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:235px;height:235px}#detail_decorate_root .magic-13{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-14{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-15{width:245px;height:245.00000000000003px;overflow:hidden}#detail_decorate_root .magic-16{position:relative;left:0;top:0;width:245.00000000000003px;height:245.00000000000003px}#detail_decorate_root .magic-17{width:245px;height:245px;overflow:hidden}#detail_decorate_root .magic-18{position:relative;left:0;top:0;width:245px;height:245px}#detail_decorate_root .magic-19{width:750px;border-collapse:collapse}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:294px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{display:none}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:138px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:99px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:240px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:135px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:136px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:293px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:138px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:99px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:240px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:359px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:241px;box-sizing:content-box}#detail_decorate_root .magic-33{position:relative;left:0;top:0;width:220px;height:220px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:407.4759437453738px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:407.4759437453738px}#detail_decorate_root .magic-36{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:364px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:364px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:421.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:421.875px} Product Overview NK801 medical X-ray collimator used with the C-arm NK801 medical X-ray collimator is used for medical diagnostic X-ray tube components whose x ray tube voltage is not higher than 125kV. It is an X-ray collimator with continuous adjustable radiation field used with the C-arm. This product is for adjustment and specific X-rays. Radiation field use.
This X-ray collimator adopts two sets of single-layer lead blade protection structure, rectangular irradiation field, and the
movement of the blade is driven by a stepping motor. Built-in 3 levels of automatic selection of different aluminum equivalent filtration devices. The control of blade movement and other functions adopts switch control mode.

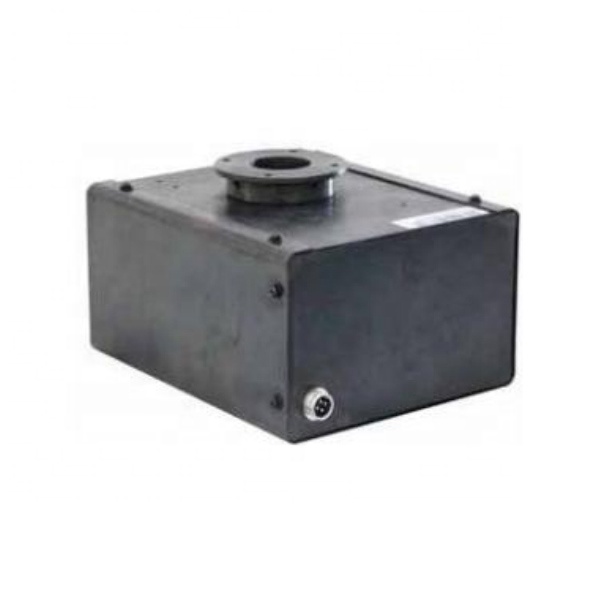

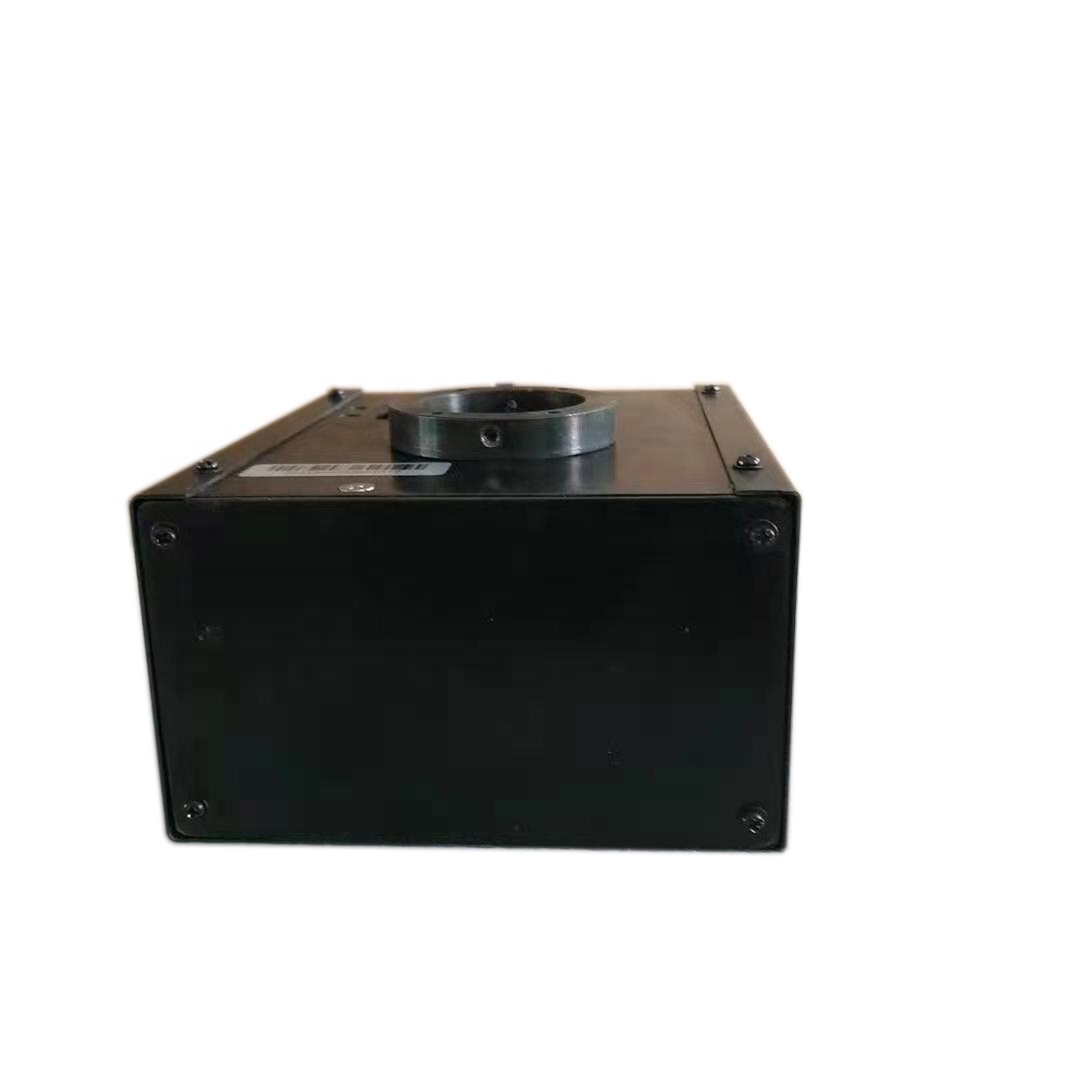

FEATURES AT A GLANCE Lead blade protection Rectangular field Electric X Ray Collimator The stepping motor drives the blades to move Built in filter 3 different aluminum equivalent filtration x ray collimator top viewx ray collimator side viewx ray collimator view PRODUCT SPECIFICATIONS

Item		Item	Condition	Index
Irradiation field	Min irradiation field	SID=100cm	< 30mm × 30mm
		Max irradiation field	SID=100cm	< 300mm × 300mm
Filter	Inherent filtration		0mmAl
		Additional filtering		Position 0: empty; Position 1: 0.1mmCu+1mmAl; Position 2: 0.2mmCu+1mmAl; Position 3: 1mmAl+1mmAl
Distance from focal point to beam limiter installation surface				≤60mm
power input				DC24V±1% 2A

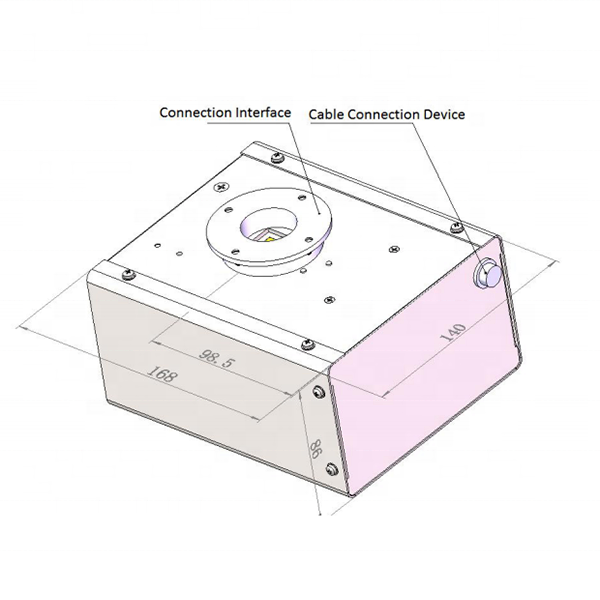

Dimensions				168mm×140mm×86mm (L×W×H)
Weight			Without cable	2.4kg
Grounding resistance (cable length 1m)			25A/AC6V、10S	≤0.1Ω
Product use conditions			The ambient temperature is +10℃-+40℃; relative humidity ≤75%; Atmospheric pressure: 700hpa-1060hpa.		The ambient temperature is +10℃-+40℃; relative humidity ≤75%; Atmospheric pressure: 700hpa-1060hpa.
Product storage conditions			Temperature: -20℃-+55℃; Relative humidity: ≤93%; Atmospheric pressure: 700hpa-1060hpa.
Transport conditions			No more than 3 layers, rainproof

PRODUCT CONFIGURATION X ray tube mounting plateBuilt in aluminum filterStepper motor drive SALES AND SERVICE NETWORK SIMILAR PRODUCTS Recommended by sellerNewheek X-Ray collimator compatible for both mobile xray and normal digital medical x ray$370.00 - $470.00 / Set1.0 Setsx ray collimator for radiography x ray machine$560.00 - $660.00 / Piece1 Piecex ray collimator for portable x ray Mobile X Ray Machine$600.00 - $800.00 / Set1.0 Sets CouponsView all the coupons$500.00 OFFOrder more than $10,000.0004/01/2021, 12:00 AM - 05/31/2021, 11:59 PMGet Coupon$50.00 OFFOrder more than $1,000.0004/01/2021, 12:00 AM - 05/31/2021, 11:59 PMGet Coupon Why Choose Us FAQ 1.What is our main product? We are the original manufacturer of x- ray machine and accessories for more than 16 years. Our main products are Bucky Stand , Mobile X-ray Table , Mobile X-ray machine , X-ray Detector , Exposure Hand Switch ,etc. 2. What is the Payment Method ? We could accept payment by TT, Western Union, Visa Credit Card, etc. 3.How long is the Lead Time? Within 15 workdays for X-ray machine accessories after receipt of payment. 4. Can our products be customized? If our product specifications can not meet your needs, we can also customize products for you. We accept OEM or ODM items. We could print your logo during production.
