NK103 X ray collimator (for portable x ray machine)

The collimator is an electromechanical Optical device installed in the output window of the tube sleeve of the x-ray tube assembly. Its main function is to control the X-ray beam output field of the X-ray tube to satisfy the X-ray imaging diagnosis and make the projection range. Minimize, avoid unnecessary doses, and absorb some scattered light to improve image clarity. Product Paramenters

NK103 X ray collimator
Max Irradation Field	430mmx430mm (SID=90cm)
Light Field Average Luminance	>160lux
Lumination Ratio	>4:1
Lamp	12V/50W
Lamp Single Lighting Time	30s
X-Ray Tube Focus-Mounting Serface Distance mm (it can be adjusted according to requirement）	40
Shielding Leaves	1 Layer
Fixed Filtration（75kV)	1mmAL
Leave Driving Method	Manual
Input Power	AC12V
SID Measurement Band Tape	Option
Leave Aperture Display	Knob Pointer Scale

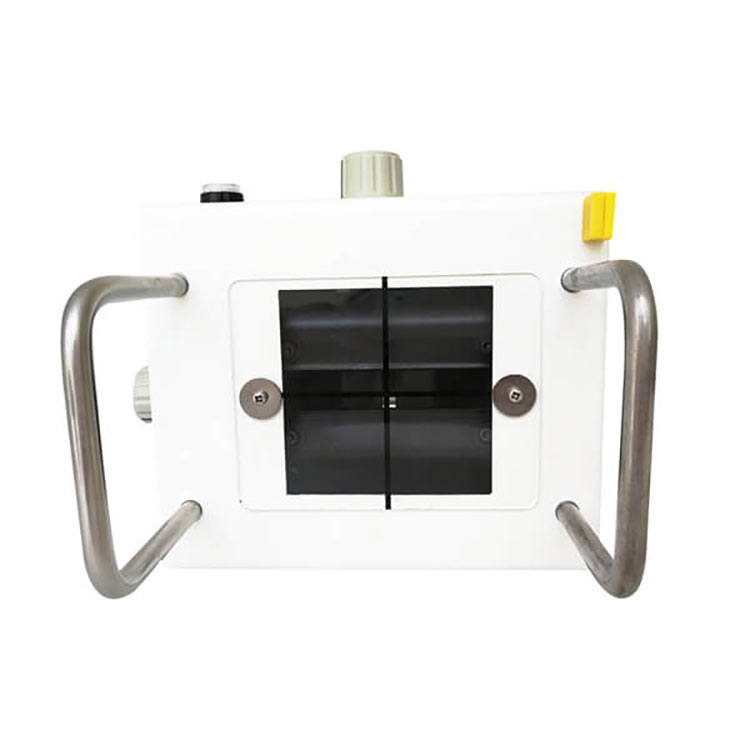

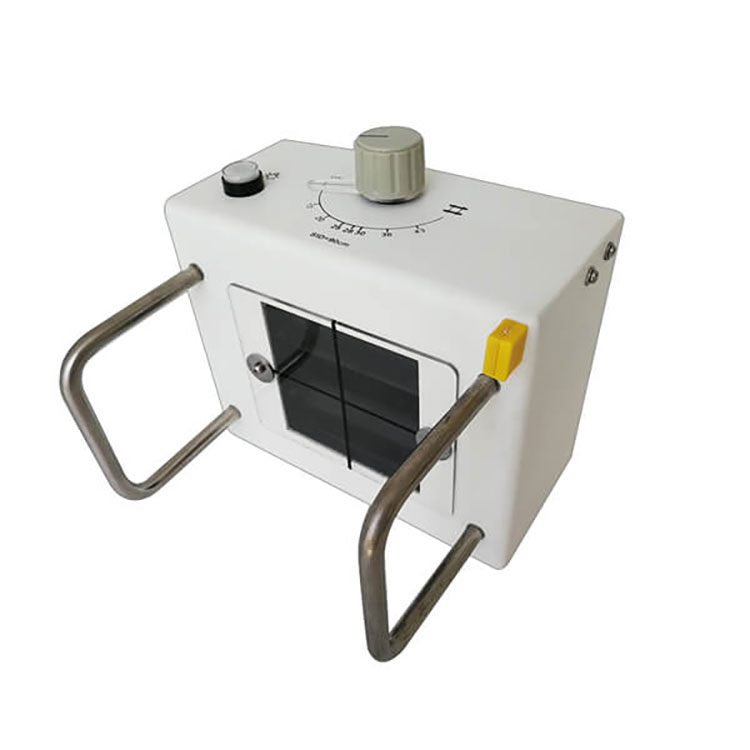

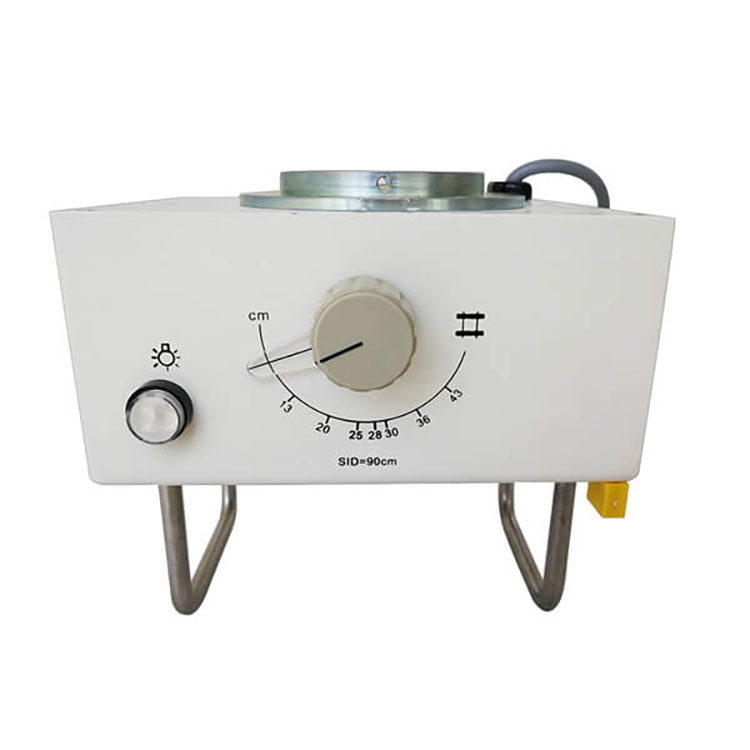

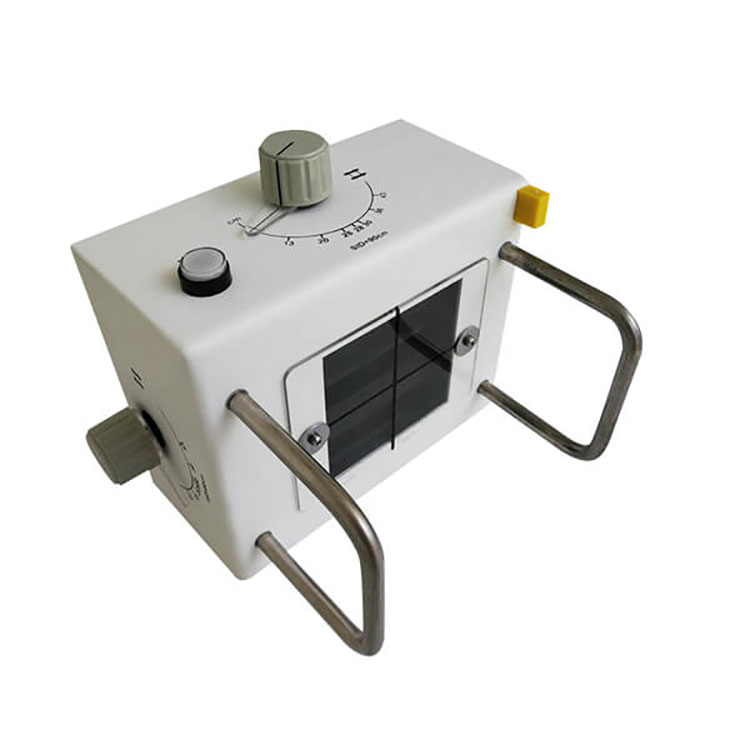

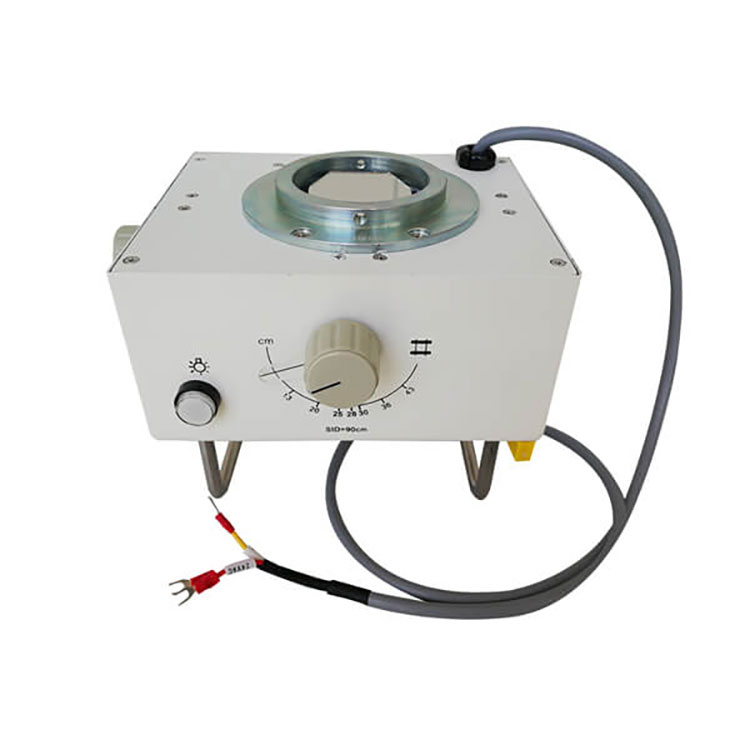

Details Images Product ApplicationNK103 is a X-ray collimator with continuously adjustable radiation field, which is used on X-ray tube for medical diagnostic with
a voltage lower than 125 kV.
It is widely used on different x-ray equipment, such as radiography or fluoroscopy x-ray machine.
It mainly used on portable x ray or Mobile X Ray Machine.
It also can be used on normal radiography x-ray machine. Company Profile Weifang Huading Electronic Technology Co., Ltd. (hereinafter referred to as Newheek) is a professional medical equipment supplier integrating R&D and sales of medical equipment, focusing on the field of radiology medical equipment for 22 years. We have established partnerships with dozens of countries around the world. The main products are: x ray hand switch, foot switch, x ray chest bucky stand, x ray mobile radiography table, X Ray Image Intensifier TV system, high voltage power supply, high voltage cable, collimator, U-arm, portable X Ray Device, mobile DR etc x ray machine machine and components. Newheek is constantly improving and innovating to provide customers with better products and services. FAQ Q1. What is our main product?
