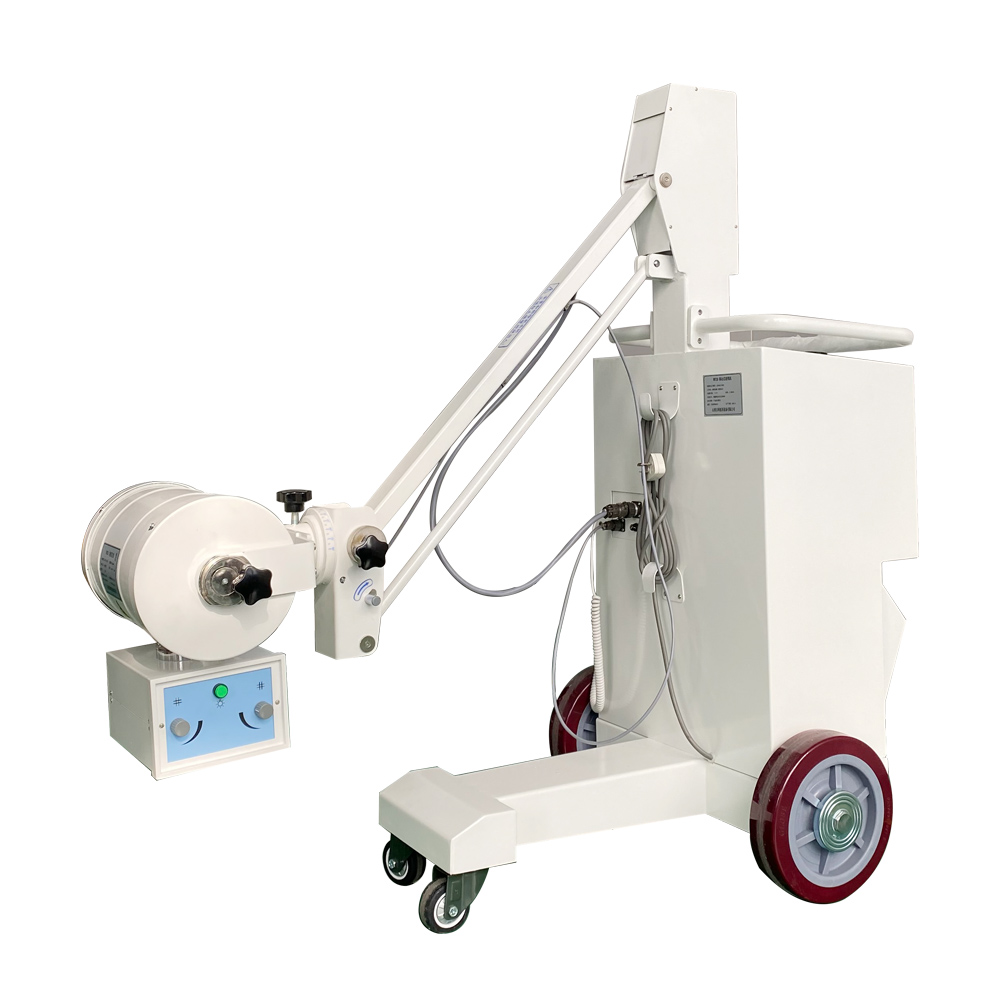

medical equipment 50mA mobile x ray machine for clinic hospital chest radiography

Product Description

Applicatin:

It is mainly applicable for lumbar spine, chest, limbs, hand, foot, mouth and other parts x-ray radiography. Include image collect, image acquisition, image transmission and image processing software.

Main Features: ● For photography in hospital wards and emergency rooms ● Flexible mobile operation performance ● Wireless remote exposure, greatly reducing the radiation dose of physicians

Power Supply	Single phase AC three-wire system, voltage 180V ~ 250V;
		Frequency 50Hz; source resistance ≤ 0.22Ω;
		Capacity 8kW; max current 37A ( instant )
Radiography	Power supply voltage: AC 220V ± 22V;
		Power frequency: 50Hz ± 0.5Hz;
		Power capacity: ≥5kVA;
		Maximum allowable internal resistance of power supply: 1Ω
X-ray tube focus	Tube voltage: 40-90kV 11 levels, 5kV each;
		Tube current: 2 levels of 30 and 50mA;
		Time: 0.05s-6 s in 20 levels.
Mechanical properties	When the X-ray generator window is down, the range of focus from the ground is 450mm ~ 1770mm;
		The rotation angle of X-ray generator around the horizontal axis is ± 180º;
		The rotation angle of X-ray generator around the vertical axis is ± 90º;
Overall dimensions	1290（L）×680（W）×1935（H）（mm）

Specification

Item	Specification
Input power	Voltage: AC220V±22V Frequency: 50/60Hz±1Hz Power capacity: ≥5kVA Inner resistance: ≤0.5Ω
Maximum output power	P =110kV×36mA=4kW
Nominal power	100kV，40mA，0.1s，4kW
Frequency	≥40kHz
kV adjusting range	40kV～110kV,continuous adjustment step 1 kV
mA adjusting range	36mA～70mA
mAs adjusting range	1mAs-200mAs, Shifted adjustment
adjusting range	0.04s～3.2s
Anatomy program	24 kinds of memory choices
X-ray machine size	290×260×230mm
Weight	19 kg
Accessory	Standard: switch, cables; Option: mobile scaffold

Packing & Delivery

Physical Spe.

1. Weight: 19 kg

2. Dimension: 290×265×230 mm

3. Shipped within 7-15 days after payment

Company Profie

Founded in 1999, Weifang Newheek Medical Image Equipment Co., Ltd. produces high technology and fine quality medical x-ray equipments professionally, include image intensifier TV systems and other image equipments assemblies, which is matched with perfect service system and complete quality-control system. We will offer you extremly competitive price and fulfill all your specific needs. We insist that attention creates speciality!

Warmly welcome to contact us and visit our factory!

Contact us if you need more details on X Ray Machine Price Cr Xray. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Mobile Dr X Ray Machine、Portable X Ray Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
